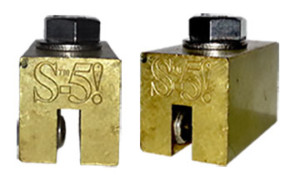

S-5-B Brass Roof Clamp / S-5-B Mini Clamp

/S-5-B Brass Roof Clamp / S-5-B Mini Clamp
S-5-B Brass Roof Clamp / S-5-B Mini Clamp2016-10-19T12:38:35-06:00
S-5-B Roof Clamp for Metal Roofs

Roof Type

  • Coil-rolled Standing Seam Copper Panels


  • Brass Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

Features Unique of the S-5-B Brass Roof Clamp

When architects and roof designers choose a copper roof, the S-5-B brass roof clamp makes it possible to still install a roof guard system and other roof-mounted systems.

  • Brass roof clamp
  • Used on copper roof panels
  • Permanence and durability consistent with the copper roof panels
  • Can be applied on a double-folded copper standing seam panel and on batten profiles
    • Will fit over a panel seam of .24” or less
  • The S-5-B mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-B MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-B Measurements
S-5-B Mini
S-5-B Mini Measurements
Snow Retention
  • KME:
    • TECu (25mm DF SS); 0.7mm Copper
  • Revere Copper:
    • DF SS; 16 oz copper
  • KME:
    • TECu (25mm DF SS); 0.7mm Copper
