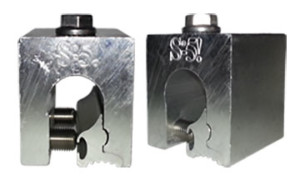

S-5-Z Clamp used with ColorGard and other Rooftop attachment systems on ZipRib panels

Roof Type

  • Standing Seam Metal Roof Panels with a “bulb” seam
    • ZipRib

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

ZipRib / bulb panel profile for S-5-Z clamp. Used when installing ColorGard

Features Unique to the S-5-Z Clamp

  • Two piece design allows it to be installed anywhere on the roof
  • The S-5-Z clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-Z clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-Z Measurements
S-5-Z Mini
S-5-Z Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • Aluform System GmbH & Co. KG:
    • Alufalz; .8 mm & .1 mm alum
    • Interfalz; .8 mm & .1 mm alum
  • Ash & Lacy Building Systems:
    • AshZip; .040 alum
    • AshZip Embossed Aluminum; .040 alum
  • Bemo:
    • Bemo Roof; .032 & .040 alum, 24 ga steel
  • Berridge:
    • Cee-Lock; 24 ga steel
  • BHP:
    • Zip Rib; .032 & .040 alum, 24 ga steel
  • Coated Metals:
    • Ultra-Flange 1.5; 24 ga & 26 ga steel
  • Corus:
    • ALU-Seam; 1 mm alum
    • Kal Zip; .032 & .040 alum, 24 ga steel
  • Custom Bilt Metals:
    • SLZ 1500; 26 ga steel
  • Hoogovens Aluminum Building Systems:
    • Kal Zip; .032 & .040 alum, 24 ga steel
  • Merchant & Evans:
    • Zip Rib; .032, .040 & .050 alum, .8 mm & 1 mm Zinc
  • Premier Metals:
    • Standing Seam 1.5; 24 ga steel
  • Schlebach:
    • 5 Nail Strip; 24 ga & 26 ga steel
  • Sheet Metal Supply LTD:
    • NS-1.5; 24 ga & 26 ga steel
  • SpeedDeck Building Systems:
    • SpeedZip; .9 mm alum
  • Tegral Metal Forming:
    • Tegnal Alu-Seam; .9 mm alum
  • Zimmerman Metals, Inc.:
    • SL-1500; 24 ga steel
  • Aluform System GmbH & Co. KG:
    • Alufalz; .8 mm & .1 mm alum
    • Interfalz; .8 mm & .1 mm alum
  • Ash & Lacy Building Systems:
    • AshZip; .040 alum
    • AshZip Embossed Aluminum; .040 alum
  • Bemo:
    • VF-Profil; 1 mm alum
  • Berridge:
    • Cee-Lock; 24 ga steel
    • High Seam Tee-Panel; 24 ga steel
  • Coated Metals:
    • Ultra-Flange 1.5; 24 ga & 26 ga steel
  • Corus:
    • Kalzip 65; .9 mm alum
  • Custom Bilt Metals:
    • SLZ 1500; 26 ga steel
  • Dimond:
    • Dimondek 400; 24 ga steel
  • Merchant & Evans:
    • Zip Rib; .050 alum, .8 mm & 1 mm Zinc, 22 ga steel
  • Premier Metals:
    • Standing Seam 1.5; 24 ga steel
  • Schlebach:
    • 5 Nail Strip; 24 ga & 26 ga steel
  • Sheet Metal Supply LTD:
    • NS-1.5; 24 ga & 26 ga steel
  • Tegral Metal Forming:
    • Tegnal Alu-Seam; .9 mm alum
  • Zimmerman Metals, Inc.:
    • SL-1500; 24 ga steel
