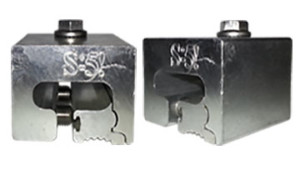

S-5-T Clamp / S-5-T Mini Clamp

/S-5-T Clamp / S-5-T Mini Clamp
S-5-T Clamp / S-5-T Mini Clamp 2016-10-19T12:38:34+00:00
S-5-T Clamp for Tee panels, standing seam metal roofs for roof snow systems and solar panel installation

Roof Type

  • Tee Panel

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

Panel options for S-5-T clamp
USA Canada

Features Unique to the S-5-T Clamp

  • Fits panel profiles with a “T” shapes seam configuration
  • Can be used on architectural “single-fold,” or “angle-seam” profiles having a horizontal projection of 5/8” or less
  • Two piece design allows it to be installed anywhere on the seam
  • The S-5-T clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-T clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-T Measurements
S-5-T Mini
S-5-T Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • Centria:
    • SDP-250; 24 ga steel
    • SRS-2; 20 ga, 22 ga & 24 ga steel
    • SRS-3; 20 ga, 22 ga & 24 ga steel
  • Englert:
    • Series 3000; 24 ga steel
  • Garland:
    • R-Mer Span; .032 & .040 alum, 22 ga steel, 24 ga SS steel
  • Imetco:
    • Series 300; 22 ga steel, 24 ga SS steel
    • Series 300-AL; .032 & .040 alum
  • Inland Buildings:
    • IN-LOC; 24 ga steel
  • McElroy Metal:
    • 138T; 22 ga & 24 ga steel
    • 238T; 22 ga & 24 ga steel
  • Tremco:
    • TremLock T-138; 22 ga & 24 ga steel
    • TremLock T-238; 22 ga & 24 ga steel
  • Vic West Ca:
    • Tradition 150-4; 24 ga steel
  • Bahien Building Systems:
    • ZL-24 Triple-Lock; 24 ga steel
  • Berridge:
    • Zee-Lock (Single Fold); 24 ga steel
  • Butler:
    • VSR: 24 ga steel
  • Centria:
    • SRS-2; 20 ga, 22 ga & 24 ga steel
    • SRS-3; 20 ga, 22 ga & 24 ga steel
  • Garland:
    • R-Mer Span; .032 & .040 alum, 22 ga steel
  • Imetco:
    • Series 300; .032 & .040 alum, 22 ga steel
  • McElroy Metal:
    • 138T; 22 ga & 24 ga steel
    • 238T; 22 ga & 24 ga steel
  • Metal Sales:
    • T-Armor; 22 ga steel
  • Nucor Building Systems:
    • CFR Vise-Lock; 24 ga steel
  • Schulte Building Systems:
    • TS-324 TripleLok; 24 ga steel
  • Tremco:
    • TremLock T-138; 22 ga & 24 ga steel
    • TremLock T-238; 22 ga & 24 ga steel
