S-5-S Clamp for Standing Seam Metal Roofs

Roof Type

  • Standing Seam Metal Roof Panels with snap-together profiles
    • Snap-Lok
    • 90 Mechanical Seam
    • Single-Lok
  • The finished seam must:
    • Be at least 1″ high
    • Have a height distance less than or equal to 0.25″ between the male portion of the panel and the female portion of the panel

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

USA Canada

Features Unique to the S-5-S Clamp

  • The S-5-S clamp is used on snap-together standing seam profiles
  • Used to avoid the crimping of seams on the following profiles:
    • Firestone
    • UC4
    • New Tech Machinery SS550 and SS675
  • Accommodates horizontal seams where the horizontal projection is under 0.54”
  • On many standing seam profiles the S-5-S clamp can be used instead of the S-5-U clamp
    • Is a cheaper metal roof clamp than the S-5-U
  • The S-5-S clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-S clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.

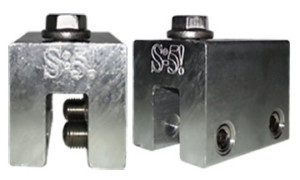

The S-5-S Clamp by S5! ® is one of our most popular roof clamps. Along with the other S-5! standard clamps, it can be used to instal ColorGard ® or X-Gard ™. ColorGard is an effective snow roof system that can be used on almost any roof. X-Gard is the same except its purpose is to be a snow roof system for solar panels. One S-5-S Clamp is required per seam (or every other seam according to S-5! recommendations) while one to two S-5-S clamps would be needed to instal X-Gard™ on a roof.

Applicable applications for the S-5-S clamp mini include the installation of signs, walkways, solar racking, satellite dishes, antennas, HVAC units and other rooftop mechanical equipment, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines and more.

The S-5-S clamp mini uses one set screw verses the two used in the standard clamp, and it is a little bit shorter than the S-5-S clamp.

General Features and Clamp Applications
Installation Instructions
S-5-S Measurements
S-5-S Mini
S-5-S Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • AEP Span:
    • Design Span hp; 22 ga & 24 ga steel
    • Select Seam (Narrow Batten); 24 ga steel
    • Snap Seam; 22 ga & 24 ga steel
  • All Weather Insulated Panels (AWIP):
    • SR Series (Single Fold); 24 ga & 26 ga steel
  • Architectural Building Components:
    • Permaseam; 22 ga & 24 ga steel
  • ASC Building Products
    • Sterling Roof System; 22 ga & 24 ga steel
  • ATAS:
    • Dutch Seam (MRD-150); .032 & .040 alum, 24 ga steel
  • Berridge:
    • Tee Panel; 24 ga steel
  • Champion Metal:
    • Snap-Loc; 26 ga steel
  • Classic Roofing Systems:
    • CR-S 25 (Single Fold); 22 ga & 24 ga steel
    • CR-S 38 (Single Fold); 22 ga & 24 ga steel
  • Coated Metals:
    • Ultra Snap Panel; 24 ga steel
  • Copper Sales:
    • UC4; 24 ga steel
  • Custom Bilt Metals:
    • CB 150 (Single Fold) NT; 24 ga steel
    • SLZ 1000; 24 ga steel
  • Delta Building Products:
    • 1 Snap Lock (CC); .027 alum, 26 ga steel
    • 5 Mechanical Lock (SF); .027 alum, 26 ga steel
  • Drexel metals:
    • 450; 24 ga steel
    • 450 SL; 24 ga steel
    • 550S; 24 ga steel
    • DMC 100SS (Single Fold); 24 ga steel
    • DMC 150SL; 24 ga steel
    • DMC 150 SS (Single Fold); 24 ga steel
    • DMC 175S Snap Lock 1-3/4; 22 ga & 24 ga steel
  • Englert:
    • Series 1100; .032 alum
    • Series 1500; 24 ga steel
    • Series 2000; .032 alum & 24 ga steel
  • Fabral:
    • 1-1/2 SSR; 24 ga steel
    • Climaguard; 24 ga steel
    • Slim Seam; .040 alum
  • Firestone:
    • UC14; 24 ga steel
    • UC4; 24 ga steel
    • UC7; 24 ga steel
  • Future Roof:
    • Snap Lock 1”; 26 ga steel
  • Garland:
    • R-Mer Loc; .032 & .040 alum, 22 ga & 24 ga steel
  • Haushaut:
    • 25m Winkelstehfalz; 0.7 alum
  • HPM Building Supply:
    • 5 Custom Lock (Single Fold); 24 ga steel
    • Shur-Lock; 22 ga & 24 ga steel
    • Shur-Lock Pro; 22 ga & 24 ga steel
  • Imetco:
    • PremLok 1-1/2; .032 & .040 alum, 22 ga & 24 ga steel
    • Snap Lock 1-3/4; .032 & .040 alum, 22 ga & 24 ga steel
  • Interlock Roofing:
    • Future Roof 1.5” SF; 26 ga stell
    • Snap Lock 1”; .027 alum
  • Jacobi:
    • JACOBIFALZ 38; 0.75mm steel
  • KBS:
    • 1” Single Lock; 24 ga steel
    • 5” Single Lock; 24 ga steel
  • MBCI:
    • LokSeam; 22 ga & 24 ga steel
  • McElroy Metal:
    • Medallion-Lok; 22 ga & 24 ga steel
  • Merchant & Evans:
    • Zip-Lok 1.5 (Single Fold); 24 ga steel
  • Met-Seam:
    • MSPro: 0.5mm Stainless, 0.7 alum, 0.7 Zinc
  • Metal-Fab Manufacturing:
    • MetFab Historic Panel – 1 (Single Fold); 24 ga steel
    • MetFab Historic Panel – 1.5 (Single Fold); 24 ga steel
    • MetFab Snap-on 550 Panel; 24 ga steel
  • Morin:
    • SWL; 22 ga & 24 ga steel
  • NedZink:
    • NATURAL 24mm (Single Fold); 0.7 Zinc
  • New Tech Machinery:
    • SS 100 (Single Fold); 24 ga steel
    • SS 150 (Single Fold); 24 ga steel
    • SS 450; 24 ga steel
    • SS 450 SL; 24 ga steel
    • SS 550 Snap Lock 1-1/2; 24 ga steel
    • SS 675 Snap Lock 1-3/4; 22 ga & 24 ga steel
  • Nu Ray Metals:
    • Series 1750 Standing Seam; 24 ga & 26 ga steel
    • Series 2000 Standing Seam; 24 ga & 26 ga steel
  • OC Metals:
    • OCM 100 MS (Single Fold); 24 ga steel
    • OCM 150 MS (Single Fold); 24 ga steel
    • OCM 150 SL; 24 ga steel
    • OCM 175 SL; 24 ga steel
  • Petersen Aluminum Corp:
    • Snap Clad; 22 ga & 24 ga steel
  • Premium Panels Inc:
    • Premium Snap 550; 24 ga steel
  • Reeh:
    • Reehfalz 38; 0.7mm steel
  • Sheet Metal Supply LTD:
    • SLF-1.75; 24 ga steel
  • Una-Clad:
    • UC14; 24 ga steel
    • UC4; 24 ga steel
  • Union Corrugating Company:
    • ML 150 (Single Fold); 24 ga steel
  • Vic West Ca:
    • Prestige; 24 ga steel
  • AB Martin Roofing;
    • AB Seam 19.5; 24 ga steel
  • AEP Span:
    • Design Span hp; 22 ga & 24 ga steel
    • Snap Seam; 22 ga & 24 ga steel
  • All Weather Insulated Panels (AWIP):
    • SR Series (Single Fold); 24 ga & 26 ga steel
  • Armor Building Supply:
    • Armor Clip; 26 ga steel
    • Armor Lock; 26 ga steel
  • ASC Building Products
    • Sterling Roof System; 22 ga & 24 ga steel
  • ATAS:
    • Dutch Seam (MRD-150); .032 & .040 alum, 24 ga steel
  • Central Texas Metal Roofing Supply
    • ShurLoc 175; 24ga steel
  • Champion Metal:
    • Snap-Loc; 26 ga steel
  • Classic Roofing Systems:
    • CR-S 25 (Single Fold); 22 ga & 24 ga steel
    • CR-S 38 (Single Fold); 22 ga & 24 ga steel
  • Coated Metals:
    • Ultra Snap Panel; 24 ga steel
  • Copper Sales:
    • UC4; 24 ga steel
  • Custom Bilt Metals:
    • CB 150 (Single Fold) NT; 24 ga steel
    • SLZ 1000; 24 ga steel
  • Delta Building Products:
    • 1 Snap Lock (CC); .027 alum, 26 ga steel
    • 5 Mechanical Lock (SF); .027 alum, 26 ga steel
  • Drexel metals:
    • 450; 24 ga steel
    • 450 SL; 24 ga steel
    • DMC 100NS; 26 ga steel
    • DMC 100SS (Single Fold); 24 ga steel
    • DMC 150SL; 26 ga steel
    • DMC 150 SS (Single Fold); 24 ga steel
    • DMC 175S Snap Lock 1-3/4; 22 ga & 24 ga steel
  • Englert:
    • Series 1500; 24 ga steel
    • Series 2000; .032 alum & 24 ga steel
  • Everlast Roofing Inc;
    • Everseam: 24 ga steel
  • Fabral:
    • 1-1/2 SSR; 24 ga steel
    • Climaguard; 24 ga steel
    • Slim Seam; .040 alum
  • Firestone:
    • UC14; 24 ga steel
    • UC4; 24 ga steel
  • Future Roof:
    • Snap Lock 1”; 26 ga steel
  • Garland:
    • R-Mer Loc; .032 & .040 alum, 22 ga & 24 ga steel
  • Haushaut:
    • 25m Winkelstehfalz; 0.7 alum
  • HPM Building Supply:
    • 5 Custom Lock (Single Fold); 24 ga steel
    • Shur-Lock; 22 ga & 24 ga steel
    • Shur-Lock Pro; 22 ga & 24 ga steel
  • Imetco:
    • PremLok 1-1/2; .032 & .040 alum, 22 ga & 24 ga steel
    • Snap Lock 1-3/4; .032 & .040 alum, 22 ga & 24 ga steel
  • Interlock Roofing:
    • Future Roof 1” SF; .027 alum, 26 ga steel
    • Future Roof 1.5” SF; .027 alum, 26 ga steel
    • Snap Lock 1”; .027 alum
  • Jacobi:
    • JACOBIFALZ 38; 0.75mm steel
  • KBS:
    • 1” Single Lock; 24 ga steel
    • 5” Single Lock; 24 ga steel
  • MBCI:
    • LokSeam; 22 ga & 24 ga steel
  • McElroy Metal:
    • Medallion-Lok; 22 ga & 24 ga steel
  • Merchant & Evans:
    • Zip-Lok 1.5 (Single Fold); 24 ga steel
  • Metal Sales;
    • Vertical Seam; 24 ga steel
  • Metal-Fab Manufacturing:
    • MetFab Snap-on 400 Panel; 26 ga steel
  • Morin:
    • SWL; 22 ga & 24 ga steel
  • NedZink:
    • NATURAL 24mm (Single Fold); 0.7 Zinc
  • New Tech Machinery:
    • FF 100 (Nail Strip); 26 ga steel
    • SS 100 (Single Fold); 24 ga steel
    • SS 150 (Single Fold); 24 ga steel
    • SS 450; 24 ga steel
    • SS 450 SL; 24 ga & 26 ga steel
    • SS 675 Snap Lock 1-3/4; 22 ga & 24 ga steel
  • Nu Ray Metals:
    • Series 2000 Standing Seam; 24 ga
  • OC Metals:
    • OCM 100 MS (Single Fold); 24 ga steel
    • OCM 150 MS (Single Fold); 24 ga steel
    • OCM 150 SL; 26 ga steel
    • OCM 175 SL; 24 ga steel
  • Premium Panels Inc:
    • Premium Snap 550; 24 ga steel
  • Reeh:
    • Reehfalz 38; 0.7mm steel
  • Rolled Steel Products:
    • SL-15; 26 ga steel
  • Sheet Metal Supply LTD:
    • SLF-1.5; 24 ga steel
    • SLF-1.75; 24 ga steel
  • Una-Clad:
    • UC4; 24 ga steel
  • Union Corrugating Company:
    • ML 150 (Single Fold); 24 ga steel
    • SL 150; 24 ga steel
  • Vic West Ca:
    • Prestige; 24 ga steel
  • Zimmerman:
    • SL-1000; 24 ga steel
