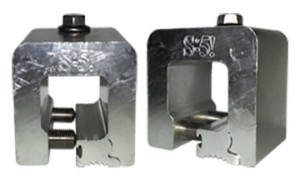

S-5-Q Clamp for Metal Roofs that have a

Roof Type

  • Standing Seam Metal Roof Panels with a “bulb” seam
    • Seam is circular or square

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

USA Canada

Features Unique to the S-5-Q Clamp

  • Accommodates standing seam metal roof panels having a large, round “bulb” seam configuration up to 29mm
    • Will fit smaller bulb-shaped profiles that were not seamed correctly
    • Seam does not need to be modified
  • This metal roof clamp is a two piece design that allows for easy installation
  • The S-5-Q clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-Q clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-Q Measurements
S-5-Q Mini Measurements
S-5-Q Mini
Brochure
Warranty
Snow Retention
Solar
Other
  • Garland:
    • R-Mer Shield; .032, .040 & .050 alum, .8mm & 1mm Zinc, 22 ga &24 ga steel, 24 ga SS steel
  • Morin:
    • MorZip; .032 & .050 alum
    • SRP; 22ga &24 ga steel
  • Garland:
    • R-Mer Shield; .032, .040 & .050 alum, .8mm & 1mm Zinc, 22 ga &24 ga steel, 24 ga SS steel
  • Morin:
    • SRP; 22ga &24 ga steel
