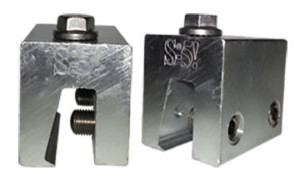

S-5-N Clamp / S-5-N Mini Clamp

/S-5-N Clamp / S-5-N Mini Clamp
S-5-N Clamp / S-5-N Mini Clamp 2016-10-19T12:38:34+00:00
S-5-N Clamp for 1

Roof Type

  • 1″ Nail-strip for Standing Seam Metal Roofs

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

USA Canada

Features Unique of the S-5-N Clamp

  • S-5-N Clamp is wider at the base in order to be installed on 1” nail strip metal roof profiles
  • The need to crimp the rib of the roof is minimized as the angled nose of the metal roof clamp is better formed for nail strip and triangle-type profiles
    • For panel profiles similar to 1” nail strip request a sample of the S-5-N Clamp as to prevent potential damage to the roof
  • The S-5-N clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-N clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Application
Installation Instructions
S-5-N Measurements
S-5-N Mini
S-5-N Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • AB Martin Roofing:
    • ABM 1 Inch Nail Strip; 24 ga steel
  • Armor Building Supply:
    • Armor Lock; 24 ga & 26 ga steel
  • ASC Building Products:
    • Skyline; 26 ga steel
  • Bridger Steel Inc:
    • 1 Inch SL; 26 ga steel
  • Bruce & Dana:
    • Snaplock; 26 ga steel
  • Coated Metals:
    • Ultra-Flange 1.0; 24 ga & 26 ga steel
  • Custom Bilt Metals:
    • SL 100 NT; 24 ga & 26 ga steel
  • DC Metal Sales:
    • 1” Nail Strip; 26 ga steel
  • Drexel Metals:
    • DMC 100NS; 24 ga & 26 ga steel
  • Englert:
    • Series 1101; 24 ga steel
  • Everlast Metals:
    • NS-100; 24 ga & 26 ga steel
  • MBCI:
    • Slimline; 29 ga steel
  • McElroy Metal:
    • Meridian; 26 ga steel
  • Metal Sales:
    • Image II; 24 ga & 26 ga steel
  • Metal-Fab Manufacturing:
    • MetFab Snap-on 400 Panel; 24 ga & 26 ga steel
  • Midwest Manufacturing:
    • Premium Pro-Snap; 26 ga steel
  • New Tech Machinery:
    • FF 100 (Nail Strip); 24 ga & 26 ga steel
  • Schlebach:
    • 1 Inch Nail Strip Panel; 24 ga & 26 ga steel
  • Sheet Metal Supply LTD:
    • NS-1; 24 ga & 26 ga steel
  • Taylor Metals:
    • Easy Lock Standing Seam; 24 ga & 26 ga steel
  • Union Corrugating Company:
    • Advantage-Lok II; 24 ga & 26 ga steel
  • Coated Metals:
    • Ultra-Flange 1.0; 24 ga & 26 ga steel
  • Custom Bilt Metals:
    • SL 100 NT; 24 ga steel
  • DC Metal Sales:
    • 1” Nail Strip; 26 ga steel
  • Drexel Metals:
    • DMC 100NS; 24 ga steel
  • Englert:
    • Series 1101; .032 alum
  • Everlast Metals:
    • NS-100; 24 ga steel
  • MBCI:
    • Slimline; 26 ga steel
  • McElroy Metal:
    • Meridian; 26 ga steel
  • Metal Sales:
    • Image II; 24 ga & 26 ga steel
  • Metal-Fab Manufacturing:
    • MetFab Snap-on 400 Panel; 24 ga
  • Midwest Manufacturing:
    • Premium Pro-Snap; 26 ga steel
  • New Tech Machinery:
    • FF 100 (Nail Strip); 24 ga
  • Schlebach:
    • 1 Inch Nail Strip Panel; 24 ga
  • Sheet Metal Supply LTD:
    • NS-1; 24 ga & 26 ga steel
  • Taylor Metals:
    • Easy Lock Standing Seam; 24 ga & 26 ga steel
  • Union Corrugating Company:
    • Advantage-Lok II; 24 ga & 26 ga steel
