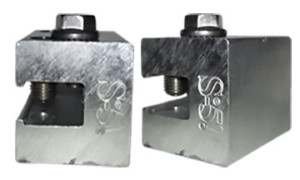

S-5-H90 metal roof clamp used in the installation of ColorGard, X-Gard and other heavy-duty rooftop installations on standing seam metal roofs

Roof Type

  • Metal Roof Panels with a horizontal seam
    • An Upside Down L

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

USA Canada

Features Unique of the S-5-H90 Clamp

  • The S-5-H90 clamp is a one-piece metal roof clamp meant to accommodate metal roof panels with a horizontal seam greater than 0.65”
  • The S-5-H90 clamp is less expensive than the S-5-U when wanting to attach to a horizontal seam
  • The S-5-H90 clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-H90 clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-H90 Measurements
S-5-H90 Mini
S-5-H90 Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • AEP Span:
    • Multilok (Triple Lok); 24 ga steel
    • Span Lok HP 2” SF; 22 ga & 24 ga steel
  • American Buildings Company:
    • Loc Seam; 24 ga steel
  • Architectural Metal Products:
    • Ultra Seam US 200S; .040 alum, 22 ga & 24 ga
  • Architectural Metal Specialties, Inc:
    • AMS200 2” Mechanical Lock; .040 alum, 22 ga & 24 ga steel
    • Ultraseam US 200S 2” Mechanical lock 90 degree; .040 alum, 22 ga & 24 ga steel
  • Associated Building Systems:
    • KA-2000; 22 ga & 24 ga steel
  • ATAS:
    • 2 3/8; .032 alum, 24 ga steel
  • Behlen Buidling Systems:
    • ZL – 16 Triple-Lock; 22 ga & 24 ga steel
    • ZL – 24 Triple-Lock; 24 ga steel
  • Bryer Company:
    • TBC-Superseam (Single Fold); 22 ga & 24 ga steel
  • Butler:
    • VSR; 24 ga steel
  • Ceco:
    • CRP; 24 ga steel
  • Centria:
    • SDP 200; 24 ga steel
  • Coated Metals:
    • Ultra Span Panel (SF); 24 ga steel
  • Custom Bilt Metals:
    • CB 2000 (Single Fold) NT; 24 ga steel
  • Drexel Metals:
    • DMC 200S 2”; 24 ga steel
    • DMC 210S (Armco Style); 22 ga & 24 ga steel
  • Englert:
    • Series 2400 (Single Fold); 24 ga steel
    • Series 2500 (Double Fold); 24 ga steel
  • HPM Building Supply:
    • 2 Custom Lock (Single Fold); 24 ga steel
  • Inland Buildings:
    • IN-LOC; 24 ga steel
  • KBS:
    • KR 24 2” Single Lock; 24 ga steel
  • Kingspan USA:
    • KingZip 1020; 22 ga & 24 ga steel
  • Laura Star-Roof, BV:
    • Artlock; 22 ga & 24 ga steel
  • MBCI:
    • BattenLok; 22 ga & 24 ga steel
    • BattenLok HS; 22 ga & 24 ga steel
  • McElroy Metal:
    • Maxima 2”; .032 alum, 22 ga & 24 ga steel
  • Merchant & Evans:
    • Zip-Lock 2 (Single Fold); 24 ga steel
  • Metal Sales:
    • Magna Loc; 22 ga & 24 ga steel
  • Metal-Fab Manufacturing:
    • MetFab III Panel; 22 ga & 24 ga steel
  • Metl-Span:
    • CFR; 24 ga steel
  • NCI/Midwest Metallic:
    • 216; 22 ga & 24 ga steel
    • BattenLok; 22 ga & 24 ga steel
  • New Tech Machinery:
    • SS 200 (Single Fold); 24 ga steel
    • SS 210A (Armco Style) 2; 22 ga & 24 ga steel
  • Nucor Building Systems:
    • CFR Vise Lock 180 Seam; 24 ga steel
    • VR16-II Vise-Lock; 24 ga steel
  • Petersen Aluminum Corp:
    • Tite-Loc; 22 ga & 24 ga steel
  • Rigid Global Buildings:
    • Hi-Tech Series Trip-Lok; 24 ga steel
    • Platinum Series Trip-Loc; 24 ga steel
  • Schulte Building Systems:
    • TS-324 TripleLok; 24 ga steel
  • Sheet Metal Supply LTD:
    • MLF-2 (SF); 24 ga steel
  • Steel Span, Inc.:
    • Architectural; 22 ga & 24 ga steel
  • Steelway Building Systems:
    • RTL-24 Triple Loc; 22 ga & 24 ga steel
  • Taylor Metals:
    • MS 200; 22 ga & 24 ga steel
  • Tremco:
    • TremLock VP; .032 alum, 22 ga & 24 ga steel
  • Union Corrugating Company:
    • ML200 (Single Fold); 24 ga steel
  • Varco Pruden:
    • SLR; 22 ga & 24 ga steel
  • Coated Metals:
    • Ultra Span Panel (SF); 24 ga steel
  • Laura Star-Roof, BV:
    • Artlock; 22 ga & 24 ga steel
  • McElroy Metal:
    • Maxima 2”; .032 alum, 22 ga & 24 ga steel
  • Sheet Metal Supply LTD:
    • MLF-2 (SF); 24 ga steel
