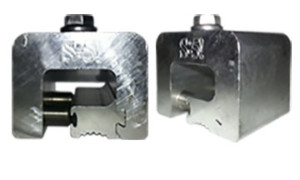

S-5-H Clamp for metal roof panels with horizontal seams

Roof Type

  • Metal Roof Panels with a horizontal seam
    • An Upside Down L
  • Zee-lock
    • Mechanically seamed sidelap

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

Features Unique of the S-5-H Clamp

  • Metal Roof clamp that can be attached to a horizontal seam on the vertical leg of the seam
  • Used on a horizontal seam when the S-5-U clamp cannot be used
  • Two piece design allows it to be attached anywhere on the rib
  • The S-5-H clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-H clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-H Measurements
S-5-H Mini
S-5-H Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • Chief Industries:
    • LTC Panel; 24 ga steel
  • Inland Buildings:
    • TS-324 Triple-Lock; 24 ga steel
  • New Tech Machinery:
    • SSQ 275 (Seamed); 24 ga steel
  • Rigid Global Buildings:
    • Platinum Series Trip-Lok; 24 ga steel
  • Schultz Building Systems:
    • TS-324 Triple-Lock; 24 ga steel
  • Chief Industries:
    • LTC Panel; 24 ga steel
  • Inland Buildings:
    • TS-324 Triple-Lock; 24 ga steel
  • New Tech Machinery:
    • SSQ 275 (Seamed); 24 ga steel
  • Schultz Building Systems:
    • TS-324 Triple-Lock; 24 ga steel
