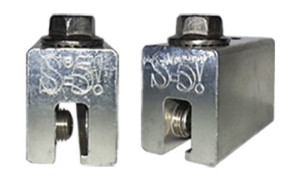

S-5-E Clamp for Double-Folded Standing Seam Roof

Roof Type

  • Double-folded Standing Seam Roof Profiles
  • Double-lock Standing Seam Roof Profiles

Accessories

  • Aluminum Roof Clamp
  • Stainless Steel Setscrews

Example Panel Profile(s)

Features Unique of the S-5-E Clamp

  • S-5-E clamp can be applied on double-folded standing seam roof profiles
    • Is a metal roof clamp recommended for Butler’s MR24™
    • For horizontal seam under.5” crimp the seam to 180 degrees at the desired clamp location
  • S-5-E clamp mini is smaller and less expensive than the S-5-U
  • The S-5-E clamp mini can be used with the S-5-PV (UL) Kit and the EdgeGrab™ to install solar panels on a metal roof
    • The S-5-E clamp MINI is NOT used when installing S-5! snow retention products. ONLY use standard S-5 clamps.
General Features and Clamp Applications
Installation Instructions
S-5-E Measurements
S-5-E Mini
S-5-E Mini Measurements
Brochure
Warranty
Snow Retention
Solar
Other
  • Alcan:
    • Falzonal (25mm DF SS); 0.7mm alum
  • ATAS:
    • 1” Field-Lok (FLL)
  • Butler:
    • MR24; 22 ga & 24 ga steel
  • Coated Metals:
    • Ultra Seam Panel (DBF); 24 ga steel
  • Copper Sales:
    • UC3; 24 ga steel
  • Corus:
    • Falzinc (25mm DF SS); 0.7mm alum
    • Titansilber (25mm DF SS); 0.7mm alum
  • Custom Bilt Metals:
    • CB 100 (Double Fold) NT; 24 ga steel
    • CB 150 (Double Fold) NT; .032 alum, 22 ga & 24 ga steel
  • Delta Building Products:
    • 5 Mechanical Lock (DBF); .027 alum, 22 ga steel
  • Drexel Metals:
    • DMC 100SS (Double Fold); 24 ga steel
    • DMC 150SS (Double Fold); .032 alum, 22 ga & 24 ga steel
  • Englert:
    • Series 1300; .032 alum, 22 ga & 24 ga steel
  • Ero-Clad:
    • Vieo 24mm (Double Fold); 0.7mm steel
  • Firestone:
    • UC3; .040 alum, 24 ga stel
  • Follansbe Steel;
    • 1in (25mm) DF (TCS); .018 & 28 ga TCS II, 28 ga & 30 ga Terne II
  • Haushaut:
    • 25mm Doppelstehfalz (DF); 0.7mm alum
  • HPM Building Supply:
    • 5 Custom Lock (Double Fold); .032 alum, 22 ga & 24 ga steel
  • KBS:
    • 1” Double Lock; 24 ga steel
    • 5: Double Lock; 24 ga steel
  • Merchant & Evans:
    • Zip-Lok 1.5 (Double Fold); 24 ga steel
  • Metal Structures
    • MSI vs. 150 +50; 22 ga steel
  • Metal-Fab Manufacturing:
    • MetFab Historic Panel – 1” (DBF); 24 ga steel
    • MetFab Historic Panel – 1.5” (DBF); .032 alum, 22 ga & 24 ga steel
  • NedZink:
    • NATUREL 24mm (Double Fold); 0.7mm Zinc
  • New Tech Machinary:
    • SS 100 (Double Fold); 24 ga steel
    • SS 150 (Double Fold); .032 alum, 22 ga & 24 ga steel
  • Novelis:
    • Falzonal (25mm DF SS); 0.7mm alum
  • OC Metals:
    • OCM 100 MS (Double Fold); 24 ga steel
    • OCM 150 MS (Double Fold); 24 ga steel
  • Prefa:
    • Prefalz (25mm DF SS); 0.7mm alum
  • Rheinzink:
    • 1” DF SS; .7mm & .8mm Zinc
  • Sheet Metal Supply LTD;
    • ML – 1.5 (DBF); 24 ga steel
  • Steel Tile;
    • Standing Seam 1.5” Mechanical; 26 ga steel
  • S. Metals:
    • US – 150; .032 alum, 22 ga & 24 ga steel
  • Umicore / VM Zinc:
    • Zinc 0.7 mm; 0.7mm
    • Zinc 0.8 mm; 0.8mm
  • Una-Clad:
    • UC3; .040 alum, 24 ga steel
  • Union Corrugating Company:
    • ML 150 (Double Fold); 22 ga & 24 ga steel
  • Zintec Srl:
    • 24mm Double Standing Seam; 0.7mm & 0.8mm Zinc
    • 38mm Double Standing Seam; 0.7mm & 0.8mm Zinc
